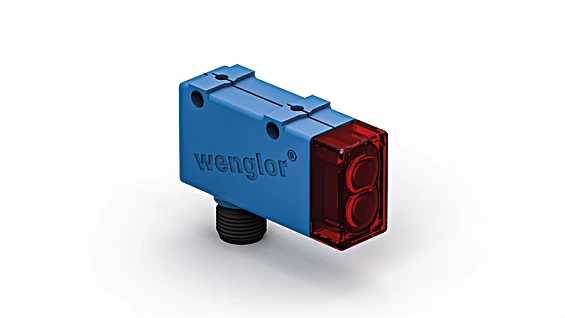

Wenglor YM24PAH2ANZ Contrast Sensor

Get a Quote

The Wenglor YM24PAH2ANZ is a high-performance contrast sensor designed for precise object detection in industrial applications. It features advanced sensing technology that ensures accurate detection even in difficult environments. It has a long sensing distance (150mm) and a high switching frequency (3kHz). With its robust design and reliable operation, the YM24PAH2ANZ is ideal for a variety of automation tasks and offers durability, easy integration and outstanding performance on a wide range of materials and substrates.

Dimensioned Size

Dimensions specified in mm (1 mm = 0.03937″)
1 = Transmitter Diode2 = Receiver Diode

Complementary Products

  • Protective Housing ZSV-0x-01
  • Set Protective Housing ZSM-NN-02
  • PNP-NPN Converter BG2V1P-N-2M
Category:

Optical Data
Range 150 mm
Setting Range 60 … 150 mm
Switching Hysteresis (Lateral Approach) < 50 µm
Light Source Laser (red)
Wavelength 660 nm
Service Life (T = +25 °C) 100,000 h
Laser Class (EN 60825-1) 1
Max. Ambient Light 10,000 Lux
Light Spot Diameter 1 mm

Electrical Data
Supply Voltage 10 … 30 V DC
Current Consumption (Ub = 24 V) < 30 mA
Switching Frequency 3 kHz
Response Time 166 µs
On-Delay 5 ms
Temperature Drift < 5 %
Temperature Range -10 … 60 °C
Switching Output Voltage Drop < 2.5 V
PNP Switching Output/Switching Current 200 mA
Short Circuit Protection yes
Reverse Polarity Protection yes
Protection Class III
FDA Accession Number 1720379-000

Mechanical Data
Setting Method Potentiometer
Housing Material Plastic, PBT
Optic Cover Plastic, PMMA
Full Encapsulation yes
Degree of Protection IP67
Connection M12 × 1; 4-pin
Weight 28 g

Output
PNP NC, PNP NO yes
