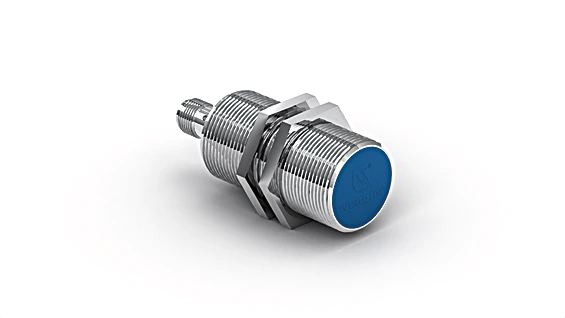

Wenglor I30H004 Inductive Sensor with Increased Switching Distance

Get a Quote

Switching Distance: 15 mm

Inductive proximity sensors with extended switching distances stand out with their robust design, easy installation and reliable measurement values. The wide coverage area makes additional sensor types unnecessary, as they can even implement special applications. Thanks to ASIC and wenglor weproTec, the new generation offers the possibility of trouble-free operation of multiple sensors in limited space conditions, as well as the ability to detect system errors in a timely manner. itches

Features overview;

  • Increased switching distance
  • Reduced installation distance thanks to wenglor weproTec
  • Innovative ASIC circuit technology
  • Integrated error indicator

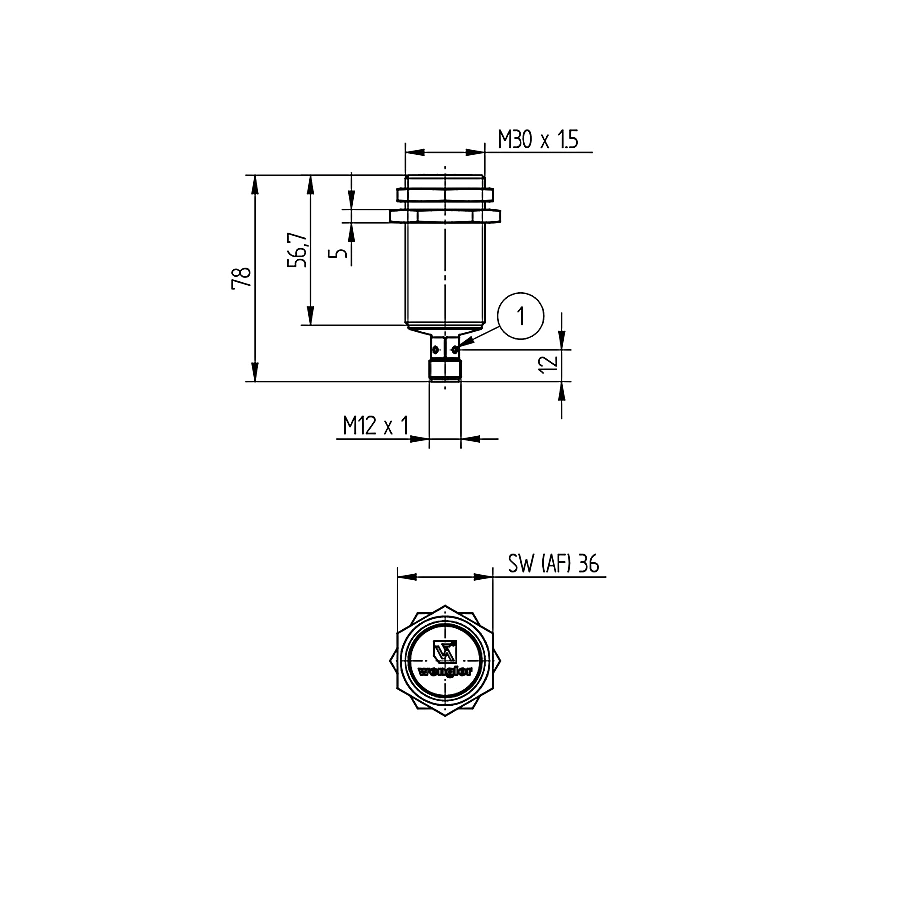

Dimensioned ;

Dimensions specified in mm (1 mm = 0.03937″)
1 = Switching Status IndicatorSleeve M30×1,5 = 50 Nm
Category:

Inductive Data
Switching Distance 15 mm
Correction Factors Stainless Steel V2A/CuZn/Al 0,70/0,36/0,34
Mounting Flush
Mounting A/B/C/D in mm 0/30/45/0
Mounting B1 in mm 0…11
Switching Hysteresis < 10 %

Electrical Data
Supply Voltage 10 … 30 V DC
Current Consumption (Ub = 24 V) < 10 mA
Switching Frequency 480 Hz
Temperature Drift < 10 %
Temperature Range -40 … 80 °C
Switching Output Voltage Drop < 1 V
Switching Output/Switching Current 150 mA
Residual Current Switching Output < 100 µA
Short Circuit Protection yes
Reverse Polarity and Overload Protection yes
Protection Class III

Mechanical Data
Housing Material Brass, nickel-plated
Sensing face Plastic, PBT
Degree of Protection IP67
Connection M12 × 1; 4-pin
Weight 108 g

Safety-relevant Data
MTTFd (EN ISO 13849-1) 3,706.54 a

General Data
Packaging unit 1 Piece

Function
Error Indicator yes

Output
PNP NC, PNP NO yes

Adjustable Parameters
Circuit NC
NC+NO
NO
