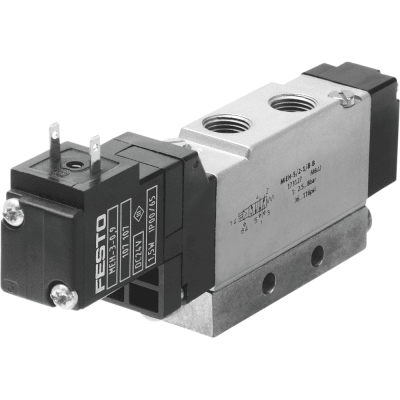

Festo Selenoid Valve MEH-5/2-1/8-B (173127)

Get a Quote

Festo MEH-5/2-1/8-B Valve (173127)

The Festo MEH-5/2-1/8-B is a high-quality pneumatic valve designed for use in various industrial applications. Known for its reliability and efficiency, this valve is a crucial component in controlling the flow of compressed air within pneumatic systems. Key features include:

  • Type: 5/2-way valve
  • Port Size: 1/8 inch
  • Actuation: The valve is pneumatically actuated, ensuring precise and responsive control of air flow.
  • Construction: Built with durable materials to withstand harsh industrial environments and provide long-lasting performance.
  • Flow Rate: Designed to offer optimal flow rates, ensuring efficient operation of pneumatic systems.
  • Mounting: Easy to install with a compact design that fits seamlessly into various setups.

The Festo MEH-5/2-1/8-B valve is ideal for applications requiring reliable and efficient air flow control, making it a preferred choice in automation and pneumatic systems.

Category:
Feature Value
Valve function 5/2 monostable
Type of actuation electrical
Width 17.8 mm
Standard nominal flow rate 600 l/min
Operating pressure 2.5 … 8 bar
Design structure Piston slide
Type of reset mechanical spring
Authorisation c UL us – Recognized (OL)
Protection class IP65
Nominal size 5 mm
Grid dimension 18 mm
Exhaust-air function throttleable
Sealing principle soft
Assembly position Any
Manual override with accessories, detenting
Type of piloting Piloted
Pilot air supply Internal
Flow direction non reversible
Overlap Positive overlap
Pilot pressure 2.5 … 8 bar
b value 0.36
C value 2.55 l/sbar
Switching time off 28 ms
Switching time on 10 ms
Duty cycle 100 %
Characteristic coil data 24 V DC: 1.5 W
Operating medium Compressed air in accordance with ISO8573-1:2010 [7:4:4]
Note on operating and pilot medium Lubricated operation possible (subsequently required for further operation)
Vibration resistance Transport application test at severity level 1 in accordance with FN 942017-4 and EN 60068-2-6
Shock resistance Shock test with severity level 2 in accordance with FN 942017-5 and EN 60068-2-27
Corrosion resistance classification CRC 2 – Moderate corrosion stress
Storage temperature -20 … 40 °C
Medium temperature -5 … 50 °C
Sound pressure level 75 dB(A)
Pilot medium Compressed air in accordance with ISO8573-1:2010 [7:4:4]
Ambient temperature -5 … 50 °C
Product weight 105 g
Electrical connection Connection pattern type C to industry standard, 9.4 mm
